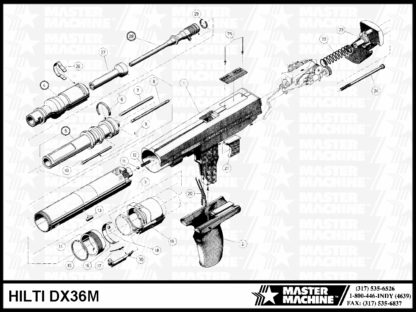

| Hilti DX-36M | 1 – Housing, 2 – Grip, 3 – Sleeve Assembly, 4 – Baseplate, 5 – Piston Guide, 6 – Retaining Ring, 7 – Pressure Pin, 8 – Pin, 9 – Retaining Ring, 10 – Pin, 11 – Ball, 12 – Strip Ball Spring, 13 – Feather Key, 14 – Ring, 15 – Retaining Ring, 16 – Annular Spring, 17 – Deflection Spring, 18 – Ball, 19 – Stop Holder, 20 – Leaf Spring, 21 – Trigger, 22 – Firing Pin Spring, 23 – Lid, 24 – Bolt, 26 – Shear Clip, 27 – Fastener Guide, 28 – Piston W/Ring, 29 – Piston Ring, 30 – Stop |
|---|
